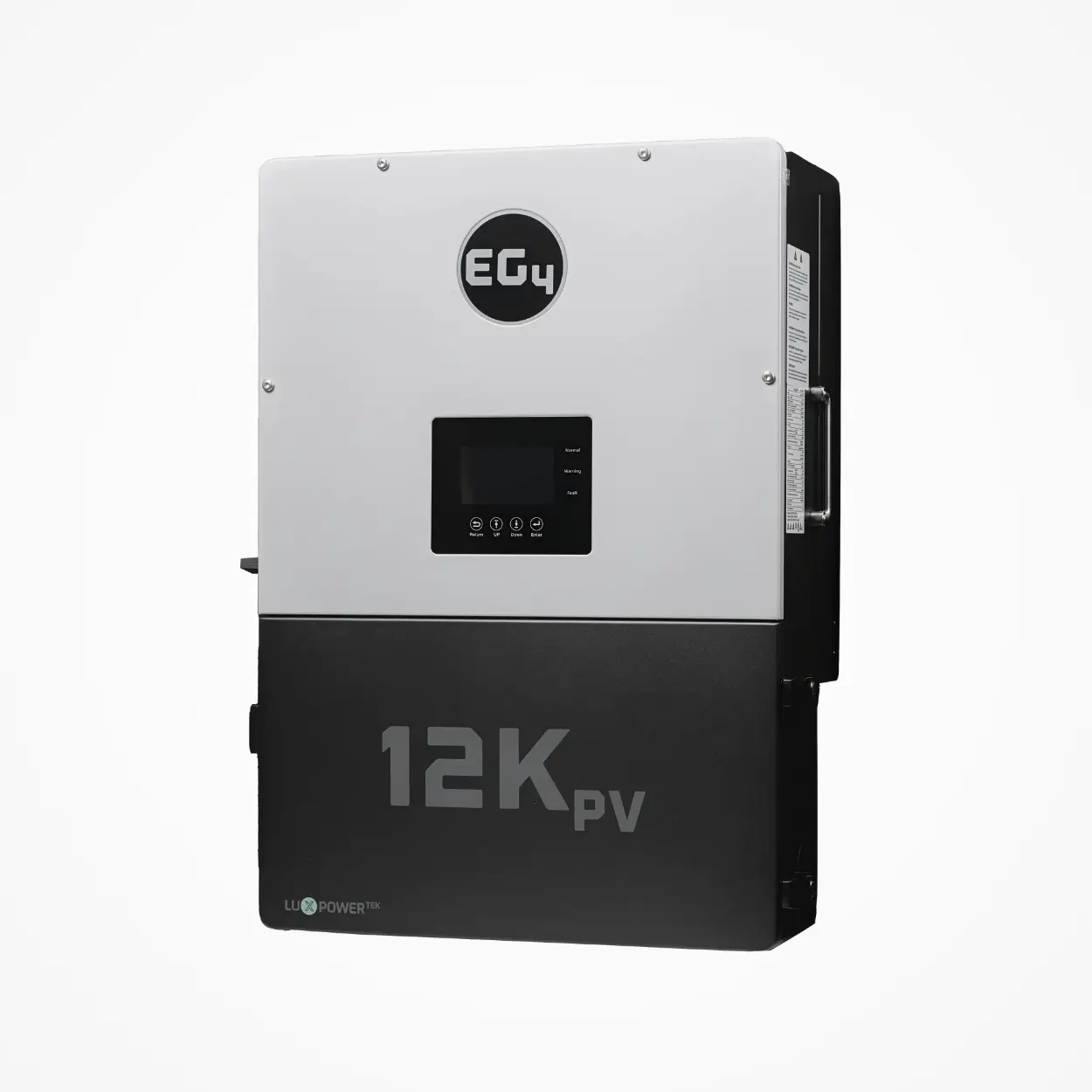

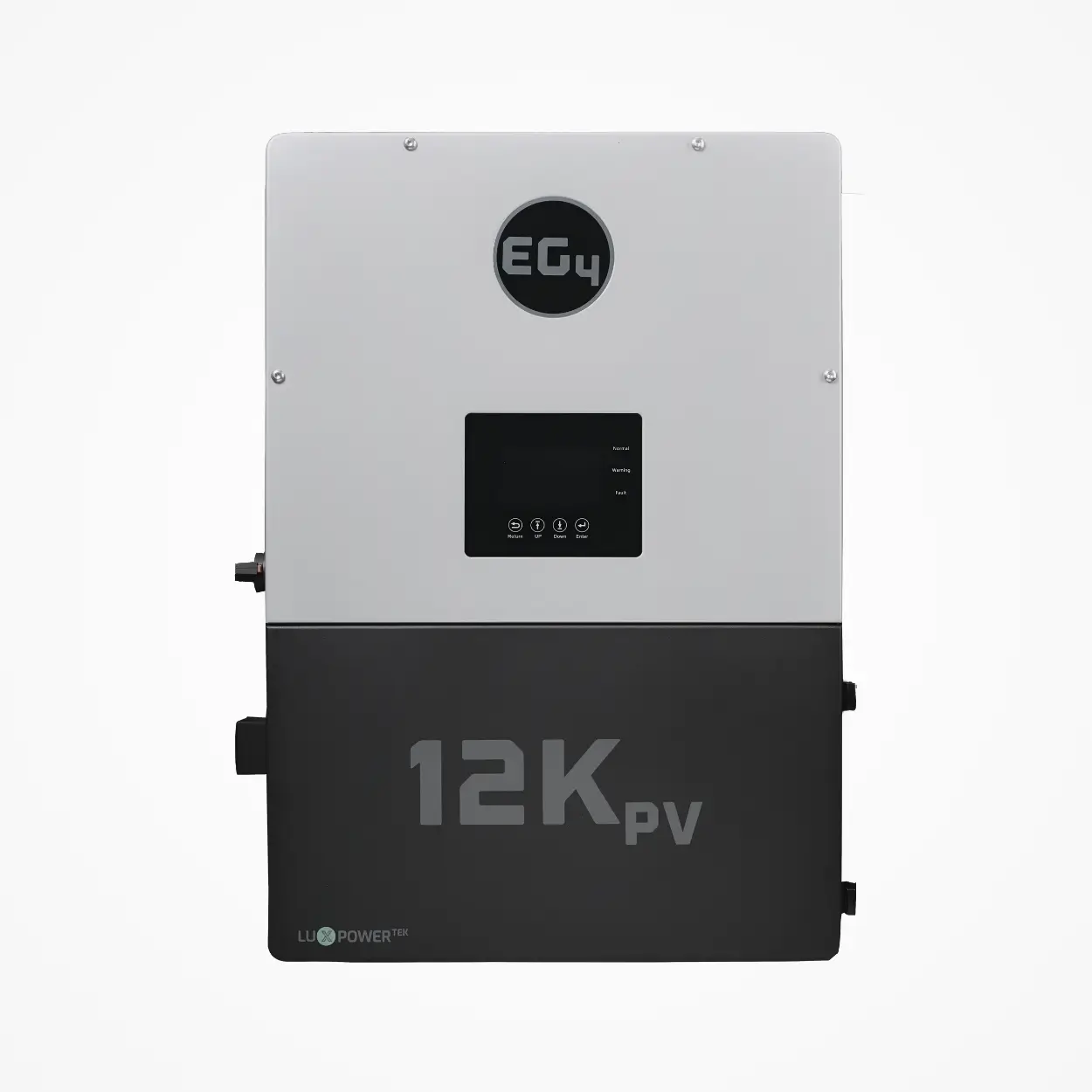

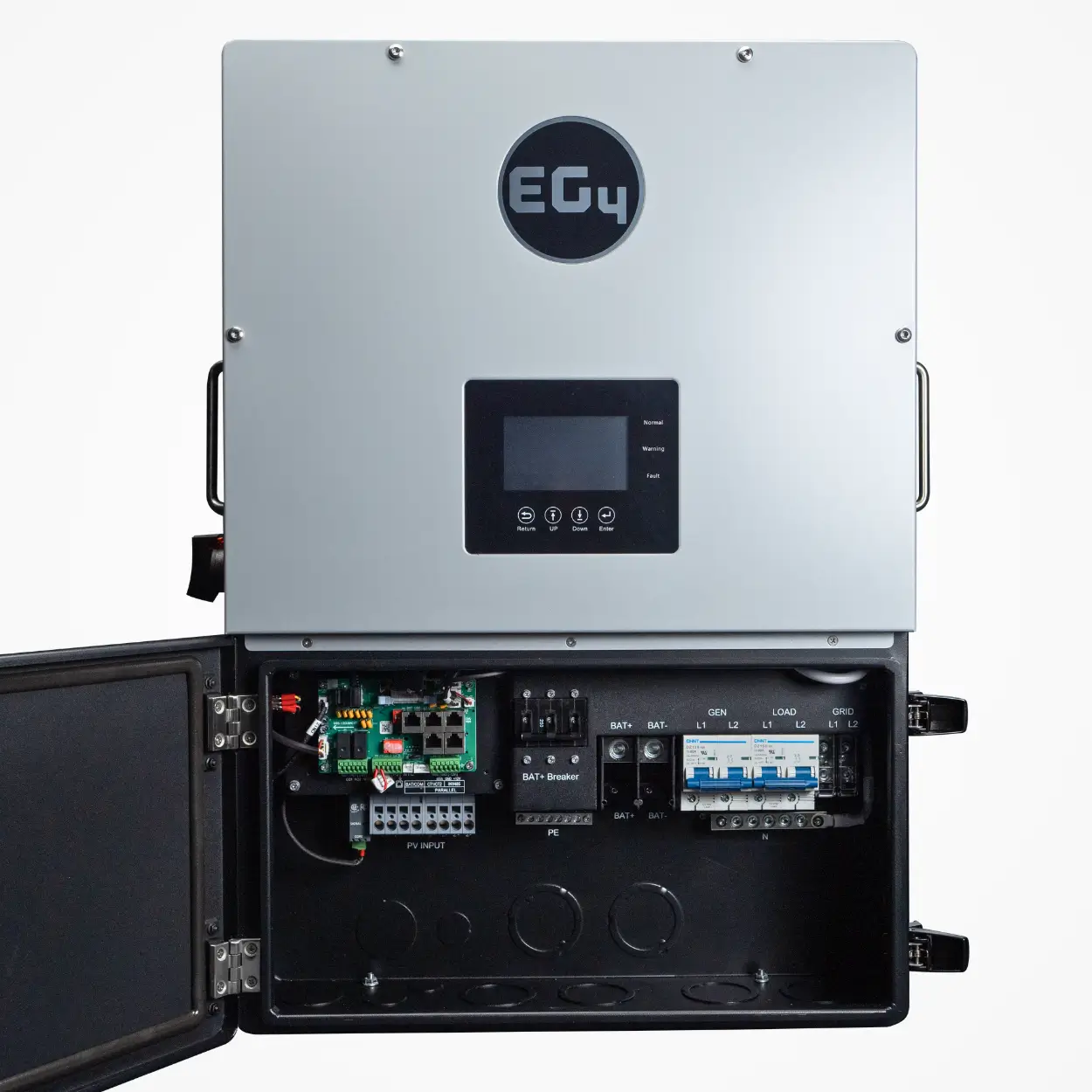

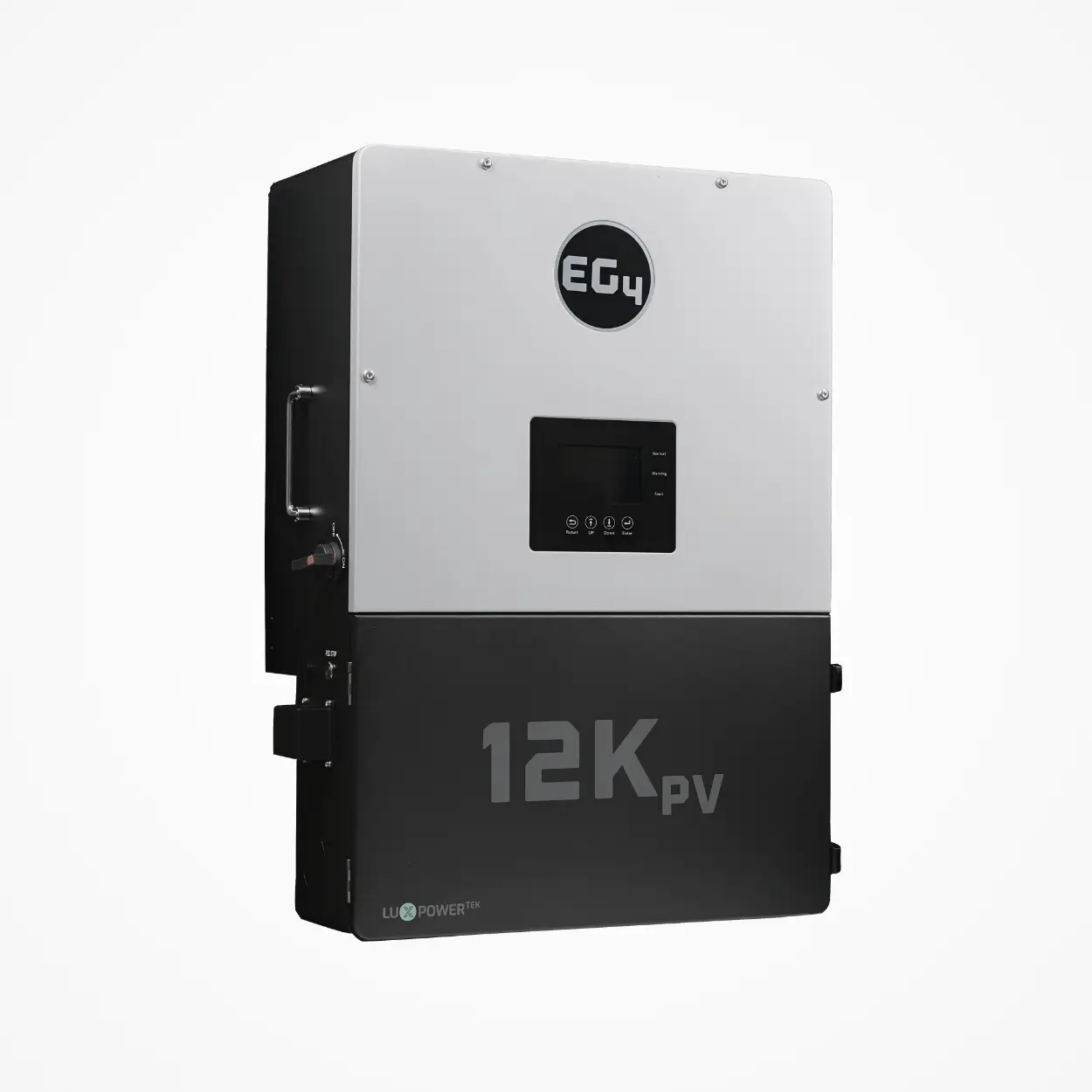

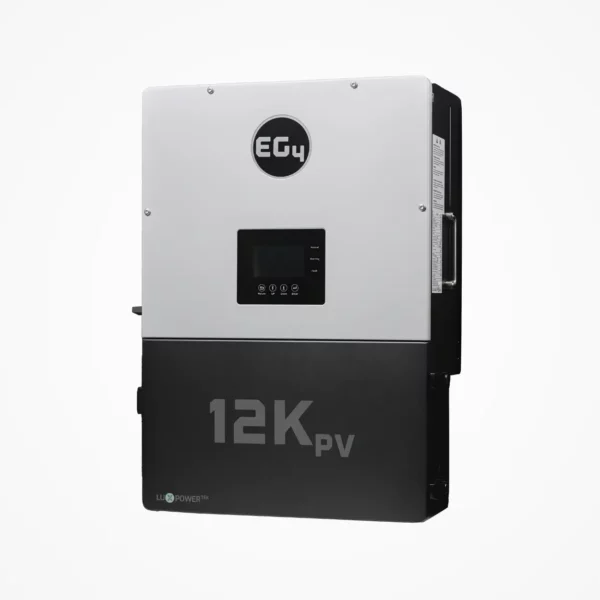

EG4® 12kPV All-In-One Hybrid Inverter

Easily integrate solar power into your current energy system or start a new one with the EG4 12kPV, our newest 48V split-phase hybrid inverter/charger. It utilizes up to 12kW of solar input, supplying up to 8kW for powering loads while using the remainder to charge your batteries. Designed for residential and light commercial applications, you can connect up to 10 units for a total power output of 80kW.

The EG4 12kPV shares the same design and software as the flagship EG4 18kPV hybrid inverter. The 12kPV is more compact and affordable, and its modular design allows for easy expansion. Users can monitor and update the system remotely using the EG4 monitoring website/app for added control and flexibility.

Description

FEATURES & BENEFITS:

“Share Battery” Setting:
Simplifies installation, saving time and money when paralleling multiple inverters

Design:
Grid interactive or off-grid configurations

Supports High Surge Loads:
Capable of starting a 5-ton air conditioner without soft-start

Monitoring and Updates:
Use the EG4 monitoring app/website to monitor system and battery performance and update system firmware

Load Imbalance Handling:
Can manage up to 4,000W imbalance for 30 minutes

Modular Design:
Allows for easy expansion and scalability as power needs grow

Generator Compatibility:
Integrated generator input for added system reliability

RSD/ESS Shutdown:
Ensures safety with rapid shutdown capabilities

KEY SPECIFICATIONS:

AC Output: 8kW continuous
PV Input: 12kW PV, recommended maximum 15kW array
Number of MPPTs: 2 (25A each)
Parallel: up to 10 units for 80kW
Dimensions: 29.5×20.5×11.2 in. (750×520×285mm)
Weight: 110 lbs. (50kg)
Warranty: 10 year
