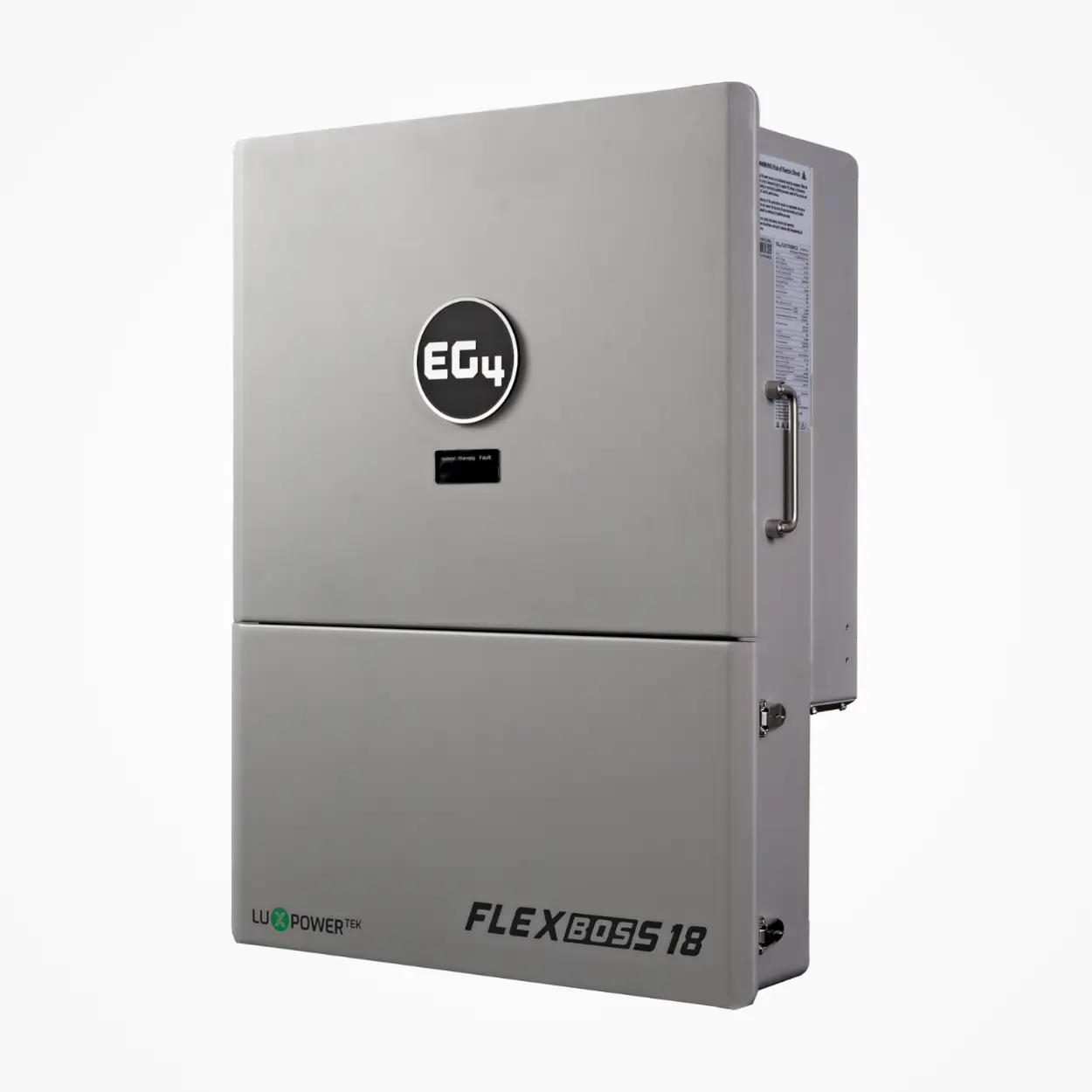

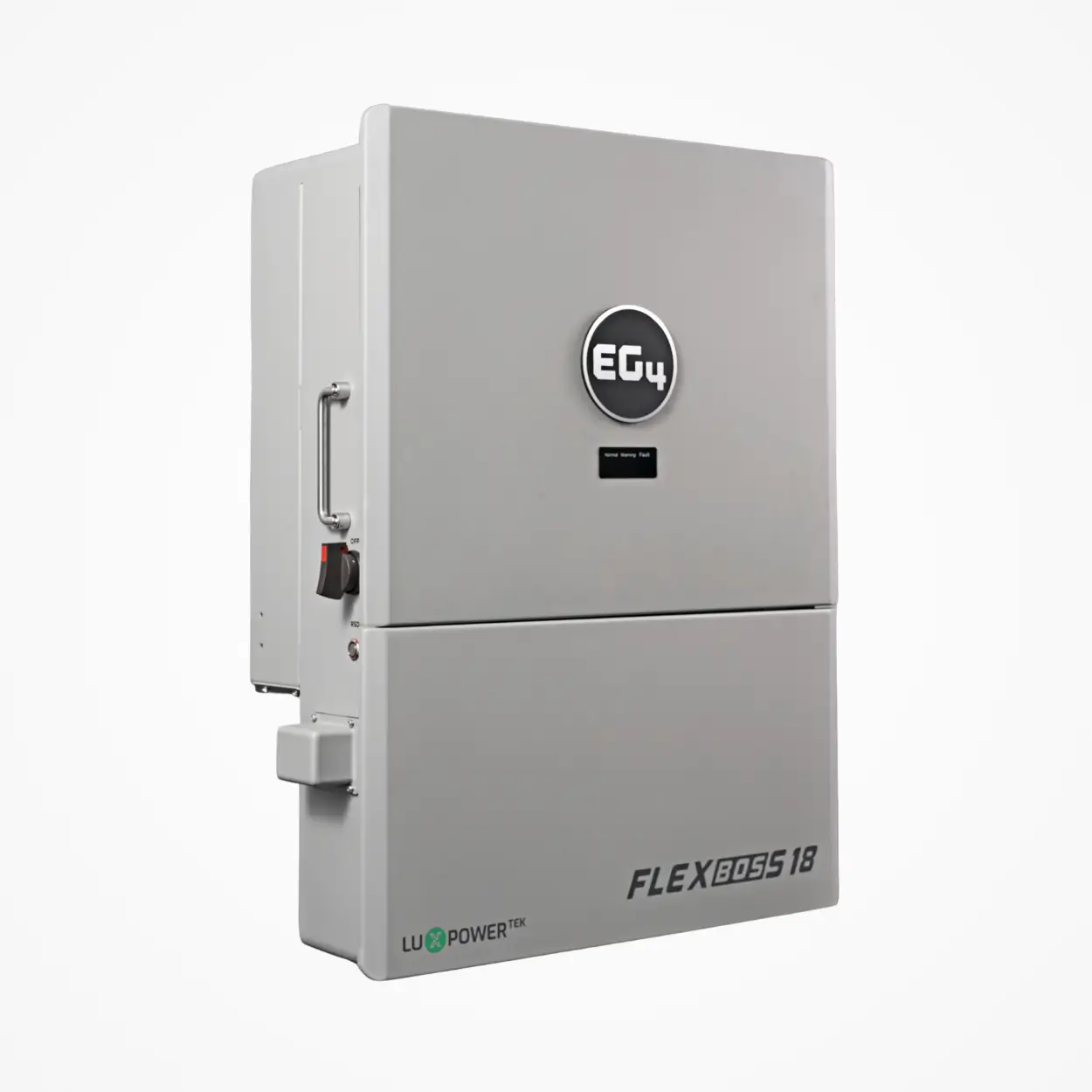

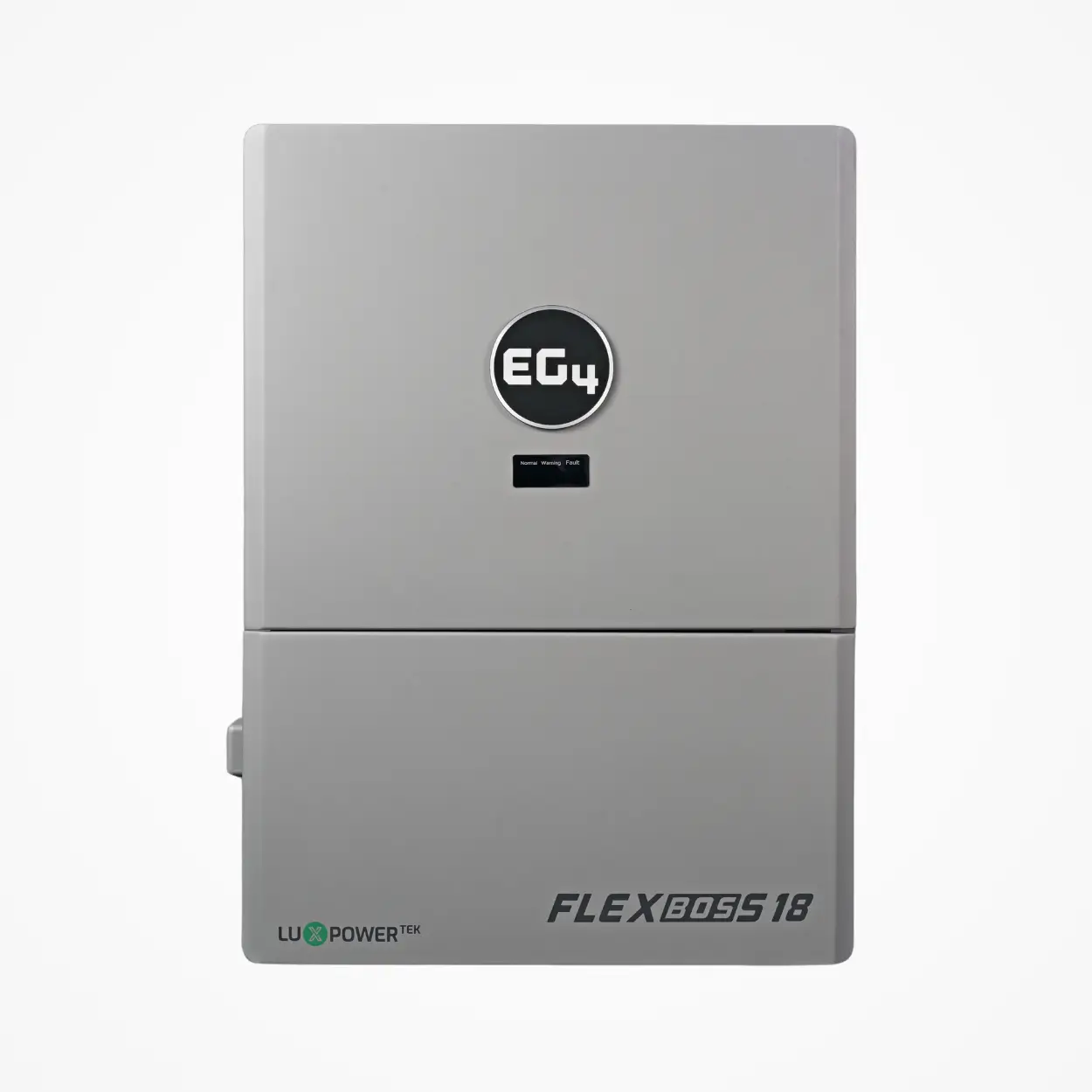

EG4® FlexBOSS18

Description

FEATURES & BENEFITS:

Cost-effective Entry into Hybrid Solar
Affordable solution for users seeking to enter the hybrid solar market without compromising on performance.

Comprehensive Certification Package
Ensures reliability and safety with certifications for diverse installation needs.

Flexible Installation Options
Offers versatility in setup, making it suitable for both residential and commercial applications.

Enhanced Power Output vs 12kPV
Delivers superior performance, providing more power than traditional 12kPV models for higher energy demands.

Complete System Compatibility
Easily integrates with EG4’s battery lineup and pairs perfectly with GridBOSS systems for a seamless solar energy solution.

KEY SPECIFICATIONS:

PV Input:

• 18kW Max Usable PV, 24kW Max Input
• Number of MPPTs: 2

On-Grid AC Output:

• Continuous Output (with PV): 13kW (54A @ 240V)
• Delivers: 13kW to grid or load with PV; 10kW to loads/battery without PV

AC Output:

• Nominal Current: 54A @ 240V
• Nominal Output Voltage: 240VAC; 208VAC
• Continuous Output Power: 10kW (41.66A @ 240V)

Dimensions: 29.5in x 20.5in x 10.4in

Weight: 114.6lbs

Warranty: 10-years
